Streamline Style

Previous pageReturn to chapter overviewNext page

,
Description

This style is used when streamlines are displayed. The graphic properties of the streamlines as well as the streamline period can be adjusted.

Fields

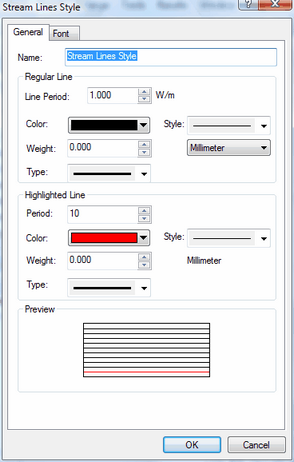

General Tab

Name

Here, you define the name of the style. You cannot leave this field empty; the chosen name must be unique, i.e. not identical to another existing name. Aside from these limitations, you are free to choose any name.

Line Period

In this setting, the number and density of the streamlines can be determined be defining the heat flow, which flows between two neighboring streamlines.

Regular Line

This setting group determines the properties of regular streamlines (color, style, size and type).

Note that some of the lines cannot be shown when their thickness exceeds 0.394 mm.

Period

To make streamlines more legible, you can have every n-th highlighted with the properties you define here. The specific settings of the highlighted streamlines (color, style, thickness) are set in the "Highlighted Line" frame.

Highlighted Line

This setting group determines the properties of highlighted streamlines (color, style, size and type).

Note that some of the lines cannot be shown when their thickness exceeds 0.394 mm.

Font Tab
