Description

This style is used when you display a Material or Boundary Condition legend.



Fields

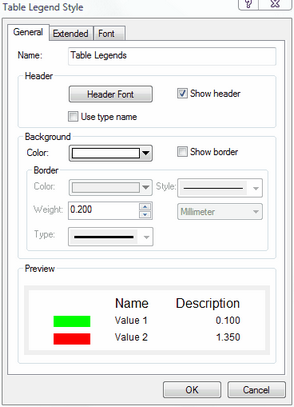

General Tab

Name

Here, you define the name of the style. You cannot leave this field empty; the chosen name must be unique, i.e. not identical to another existing name. Aside from these limitations, you are free to choose any name.

Header

This setting group contains the button Header Font, which activates a standard dialog window where the font style of the header can be adjusted.

Show header

If this option is active, then the header will be shown.

Use type name

If this option is active, then the type of the table ("Material" or "Boundary Condition") will be shown, instead of "Name".

Background

This group contains the settings for the background color of the legend. It also allows you to adjust the border lines as well as hide or unhide them.

Border

This setting group determines the properties of the legend border lines (color, style, size and type).

Note that some of the lines cannot be shown when their thickness exceeds 0.394 mm.

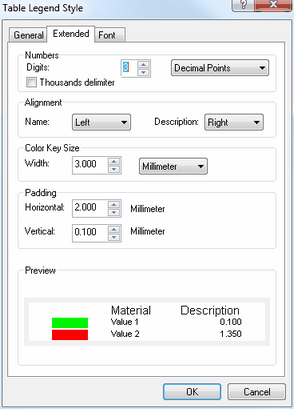

Extended Tab

Digits

Number of decimal places or significant digits, which are to be displayed. The kind - Decimal Points or Significant - you can select using the adjacent drop down-list.

Thousands delimiter

The digits left of the decimal point will be grouped into thousands.

Alignment

This setting group lets you align the legend text. You can determine the alignment with the two drop down lists "Name" and "Description".

Key Color Size

Here, you can determine the width ("size") of the color keys in the legends. You can observe the change in size in the preview pane.

Padding

This setting adjusts the padding between horizontal and vertical legend columns.

Font Tab
